What Do the Lights on My Orbi Mean?
Orbi mesh system is known for its awesome extended range and unique design which includes router and satellites. Both the devices have two LED indicators: a ring LED located on the top and a power LED on the front of the devices.
Here in this guide, you will get to know about lights over Orbi router and satellite. We will provide the meaning of every color it shows and blinks on some occasions.
At first, let’s see what’s the meaning of the router and satellite power LED lights.

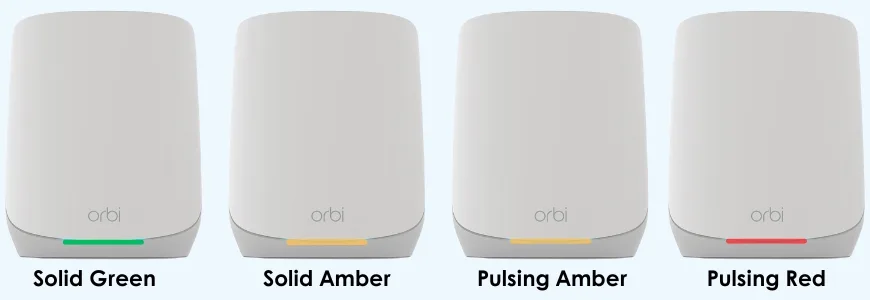

What does Orbi Router’s Power LED indicate?
In this section, you will get to know about the Orbi router’s front power LED light colors and their meaning one by one.
| Orbi Lights | Meaning |
|---|---|
| Solid Green | Orbi WiFi Router is powered on, and getting good quality of power supply |
| Solid Amber | Orbi WiFi Router is in Reboot process, it means you have pressed the power button twice |
| Pulsing Amber | Router is updating its firmware means you have set it to auto update from the app or can be in between of reset process |
| Pulsing Red | Orbi router running on corrupted firmware or facing multiple technical issues all at once |
What does Orbi Satellite’s Power LED Lights Means?
Yes, same as the router, Orbi satellite has a power LED that shows the same lights colors.
| Orbi Lights | Meaning |
|---|---|
| Solid Green | Orbi Satellite is turned on and having good supply of electricity |
| Solid Amber | Satellite is restarting, means you have pressed the power button twice or plug out & in its adapter in wall outlet |
| Pulsing Amber | Updating its firmware means satellite is manually updating or auto update feature is activated from the app or can be in between of reset process |
| Pulsing Red | Orbi satellite running on corrupted firmware or facing multiple errors |

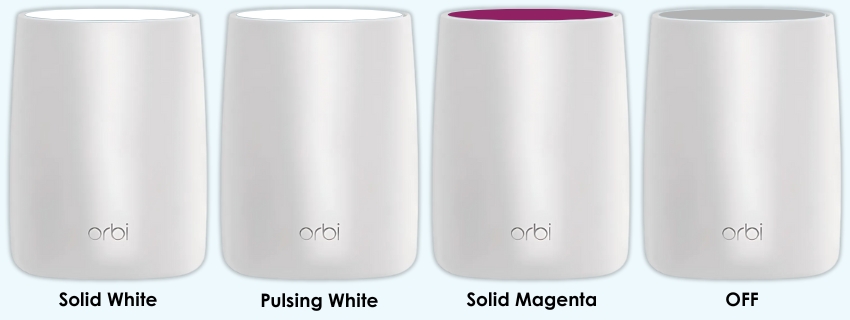

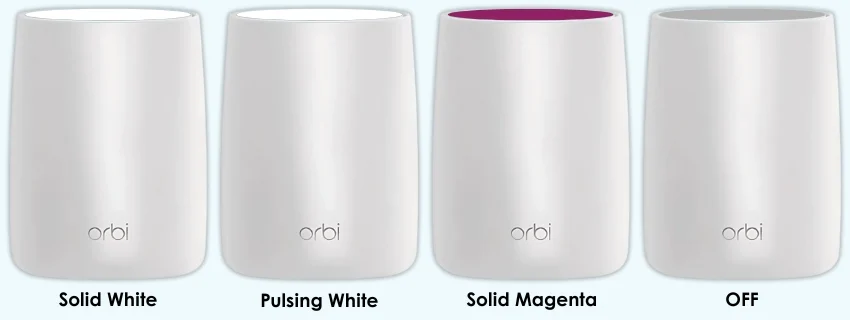

What does Orbi Router Ring LED mean?
Now in this section, we will provide information about the WiFi Router ring LED colors and why does it show these color light.
| Orbi Lights | Meaning |
|---|---|
| Solid White | Orbi WiFi router is powered on and is ready to setup |
| Pulsing White | Orbi router is booting up or searching for a satellite connection after Sync button is pressed |
| Solid Magenta (Purple) | Orbi router is not getting any internet signals from the modem or ISP |
| Off | Orbi WiFi router is connected to the internet and working normally |
What Does Orbi Satellite Ring LED Mean?
On the Orbi satellite’s top you will see a ring LED that show status of the satellite device connect with the router. Let’s dive into more information.
| Orbi Lights | Meaning |
|---|---|
| Pulsing White | Your Satellite is booting up and searching to connect with Orbi router |
| Solid Magenta (Purple) | Satellite has no backhaul connection or satellite failed to sync with Orbi router |
| Solid Blue for 3 min | Orbi satellite blue light means router and satellite connection status is good |
| Solid Amber for 3 min | Orbi router and satellite connection status is fair |
| Off | Orbi satellite is synced to the Orbi WiFi router |
Why Orbi Flashing White Light and How to Fix It?
A flashing white Orbi light on your device indicates that it is powering up. Typically, the LED will flash for a few seconds and stabilize into a solid white light after a successful boot. If the white light on your Orbi keeps flashing for longer than usual, it might mean that there’s a problem. There can be many reasons why Orbi blinking white light for unusual period of time.
Why You Are Seeing White Light?
- Connection between Modem and Orbi router is either interrupted or not established.
- Orbi not getting enough power or facing temporary loss of connection.
- Out-dated or corrupted firmware of Orbi can also be a reason of Orbi flashing white light for unusual time.
Troubleshoot with following solutions if Orbi is flashing white light for a longer duration of time.
How to Fix Orbi White Light?
1. Check Connection between Modem & Orbi
Verify if Orbi router is linked to the modem tightly using an ethernet cable. Check ethernet cable for any signs of damage, like Orbi Red Light Solutions cuts or breaks. If damaged, replace the cable.
2. Reboot Orbi System
Disconnect Orbi router and satellite from power and reconnect after a few seconds. This will restart the devices, which might fix Orbi flashing white light issue.
3. Update Orbi Firmware
Update Orbi firmware by connecting a computer to the Orbi network and opening web browser. Access orbilogin.com or orbilogin.net and login. On Orbi interface, Choose Advanced > Firmware and click ‘Check for Updates’. Download and install any available updates. This tip can prove to be very effective in order to resolve Orbi blinking white light error.
Why I’m Seeing Orbi Purple Light? How to Fix It?
Orbi router and satellite shows purple light as well. In this section, you will get to know about its meaning and how to resolve it.
Learn the factors why Orbi purple light appears on the ring LED.
Orbi Router Purple Light
If Orbi purple light/magenta light appears on the router device, it means either router is not connected to the internet or not connected to the cable modem.
Orbi Satellite Purple Light
If your Orbi satellite displays purple light/magenta light, it means that Orbi satellite not connected to the router via ethernet backhaul or Sync button.
Why You are Seeing Orbi Pink Light/Purple Light?
- Modem is not connected to the router via Ethernet cable.
- Orbi satellites are out of Orbi router reach.
- Router and satellites WiFi and internet signals are interrupted.
Now, learn solutions to fix the Orbi purple light error.
How to Fix Orbi Pink Light?
1. Check Modem to ISP Link
Confirm the modem is connected to ISP wall outlet with a coaxial cable. Also, check the cable for any damage, and replace it if necessary.
2. Verify Modem to Orbi Router Connection
Check if Orbi router is connected to the modem with an ethernet cable. Make sure the ethernet cable is tightly plugged. Also, examine the cable for any damage.
3. Place Satellite within the Reach of Router
If Orbi satellite purple light displays on the Ring LED, then bring the satellite close to the router and sync the devices again. It might help resolving the Orbi purple light issue.
4. Reboot Orbi Router and Satellite
Rebooting your Orbi router and satellite can often resolve Orbi purple light issue. To restart, turn off each device individually, wait for a few seconds, and then turn it on, one at a time.
How to Troubleshoot Other Orbi Light Issues?
There are more LED lights that you should know why they are ringing and how you can fix them.
Orbi Blue Light
If Orbi satellite blue light doesn’t show up for about 3 minutes, it means the connection between the router & satellite is not good enough.
Orbi Red Light
If you are seeing red light on your Orbi device then it means your device suffers a faulty connection, firmware corruption or connection issue with home modem.
How to Fix Orbi Red Light & Orbi Blue Light?
- Check if Orbi router is powered on, and its power cord is in good condition.
- Restart your Wi-Fi device by turning it off and on.
- Update Orbi firmware version by accessing Orbi web interface.
- If Orbi red light error is still not resolved then perform a factory reset on Wi-Fi router and reconfigure it.
Frequently Asked Questions
Different LED colors displayed on the Orbi device indicate information about its current status.
- Solid Green: Orbi router and satellite are powered on and having good power supply.
- Solid Amber: Orbi Router and satellite are restarting.
- Pulsing Amber: Router and satellite are factory resetting or updating firmware.
- Pulsing red: Orbi router and satellite facing multiple issues or firmware is corrupted.
The Orbi purple light means WiFi device is indicating problems with internet or modem connectivity. Try these solutions:
- Check Ethernet cable which connects Orbi router to modem.
- Verify if cable modem is connected to the ISP server socket via Co-axial cable.
- Restart on your modem as well as Orbi router.
- Update Orbi firmware from Orbi web interface or Orbi app, which might resolve the Orbi purple light error.
Orbi flashing white light means that the Orbi device is updating its firmware (Software) or configuring new settings.
The orbi blue light indicates that the main router is successfully connected to the modem and receiving good internet signals.
A three-minute long Orbi satellite blue light indicates a strong router connection.
If your Orbi device displays a red light, it indicates that there are several technical problems. A factory reset can fix them. Follow steps to reset your Orbi device:
- To reset, press and hold the RESET button for 10 seconds.
- By releasing it, the Factory reset process will start.
- After few minutes, when reset is done, you must re-configure it from the Orbi app or Orbi web interface.
Pink light means the router and satellite is not connected with each other and also not getting internet. To resolve the problem, reboot the mesh network or reset the router and satellite if issue not resolved.
Press Orbi router & satellite power button twice. The first press will turn off the device and second press will power on the device.
