Orbi 770 Mesh Setup | RBE771 Router & RBE770 Satellite

The Netgear Orbi 770 series mesh system has one RBE771 WiFi router and RBE770 satellites in its content package. You can buy the orbi 770 2 pack​ or orbi 770 3 pack based on your office or home space. In this page, you will get a guidance through the Orbi 770 setup steps along with its settings. You will get to know how to change the router password, Orbi router login password, firmware update, and much more.

Netgear Orbi 770 Mesh Setup

At first, you have to connect the hardware with the already the connected modem via Ethernet cable. Take the Orbi 770 router and:

• Plug it into your modem using the included Ethernet cable
• Power it on and wait for the LED to start pulsing white.
• Once the white light pulses, it’s ready to pair

Setup with Orbilogin Interface

1. Connect to Orbi’s Network. On your phone or laptop, open Wi-Fi settings, connect to the Orbi network. No password required for this first step. If it asks for a password, check the label under your router.
2. Open up any browser – Chrome, Safari, Firefox, take your pick. In the address bar (not Google search), type: orbilogin.com or orbilogin.ne or http://192.168.1.1
3. You’ll land on the Orbi setup page. Still not loading? Disable mobile data if you’re using a phone, or restart your Orbi router and try again.
4. First-time setup will prompt you to create an admin username and password. This is NOT your Wi-Fi password this is the login to access Orbi settings later.
5. It’s time to set your Wi-Fi name (SSID) and password. The one you will use to connect all your devices. Choose WPA2 or WPA3 encryption for security & Hit “Next.”

Orbi will now:

• Apply your settings
• Check for Orbi 770 firmware updates
• Sync Orbi satellites

Log Back in and Explore Orbilogin Dashboard

After setup, your browser might refresh. If not, go back to: orbilogin.com. Log in using the admin credentials you have just created.

From this dashboard, you can:

• See connected devices
• Set up guest networks
• Run speed tests
• Update firmware
• Change Wi-Fi passwords
• Set parental controls

Download the Orbi App

Skip the browser setup download the Orbi app from the App Store or Google Play. It’s way faster and makes the entire setup practically foolproof. Open the app, create or log into your Netgear account, and it’ll guide you through everything from detecting your router to adding orbi 770 satellites.

Tip: If you don’t have the app yet, do this while your router is powering up.

Syncing Orbi Satellites with Router

The Orbi 770 satellites expand your coverage so every corner of your house gets full-speed internet.

You want them halfway between your router and where the signal usually drops off like that back bedroom or basement. Once placed:

• Plug them in
• Wait for the white LED to start pulsing, just like the router
• They’ll sync automatically with the router in a few minutes

If the LED turns blue, congrats! That means you’ve got a strong connection. Amber? It’s OK, but not ideal. Red? You’re too far move the satellite closer to the router.

Name Your Network and Set a Password

In the app, you’ll be prompted to name your Wi-Fi network and set a password. Don’t leave it as “ORBI1234” or something obvious like “admin123” you’re better than that.

Make it something memorable

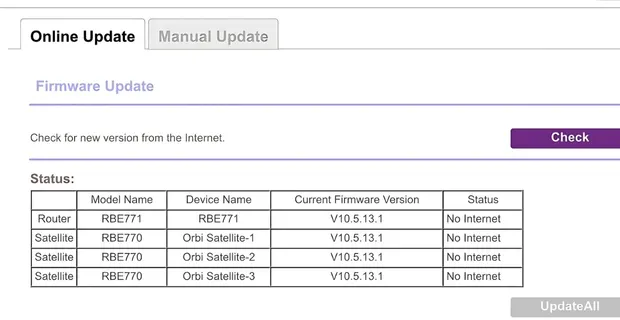

Firmware Update

Right after Orbi satellite setup, the app will ask you to install any firmware updates. The Orbi firmware updates often fix bugs, improve performance, and even boost security. So just do it now while everything’s fresh through the app or interfaces.

Common Issues & Tips for Orbi 770 Setup

Problem1 : App Can’t Detect the Router

Try restarting both the router and your modem. Also, double-check your connections. You’d be surprised how many people forget to push the Ethernet cable in all the way.

Problem2 : Satellite Light Stays Red

Move it closer to the router and try syncing again. Still red? Do a quick reset using the pinhole reset button on the satellite.

Problem3 : Internet Feels Slow / Orbi Purple Light

Check if there’s a firmware update pending. Also, make sure your devices are actually connected to the Orbi Wi-Fi and not your old router by mistake. These tips might solve the Orbi purple light issue.

Tip: Keep the satellites out in the open no hiding behind bookshelves or fish tanks. Mesh signals hate walls and obstacles.

Other Important Solutions and Tips

Soft Reset Orbi Router and Satellites

1. Usually, the main unit connected directly to your modem. It’s the one with a blue or white LED ring on top.
2. You’ll find it on the back of the router. Press and hold the button until the device powers off (about 10 seconds).
3. Pull the power cord out of the socket. Wait at least 10-30 seconds. This helps discharge any lingering power in the capacitors.
4. Reconnect the power cord and press the power button again. Give it a minute or two to fully reboot.

Wait for the LED Ring

The router will go through a color sequence:

• Solid white: Starting up
• Pulsing white: Booting up
• Solid blue or white: All set and ready

If you see solid magenta or blinking amber, the router might not be connecting to the internet. You may need to check the modem.

Hard Reset Orbi Router and Satellite

1. Make sure your Orbi router & satellite is turned on and connected to power. The power light should be white, magenta, or blue—just not off.
2. On the back of your Orbi router and satellite, find the small RESET hole. Usually, it’s next to the power port or Ethernet jacks.
3. Grab your paperclip. Press and hold the reset button for 10–15 seconds. Watch the power LED—when it starts blinking amber (or orange), release the button.
4. This part takes about 2–3 minutes. The router will go through a series of LED colors. Eventually, it’ll settle on a pulsing white light.
5. Now re-do the orbi 770 setup again. Open the Orbi app or head to orbilogin.com from your browser. Follow the on-screen steps to set up your network from scratch.
